5" inches in our Color Industrial Touch Screen
20 Supported operational languages
120 metres/min Printing Speed at 3000PI
3 x Common single removable lithium batteries WYSIWYG editing information for easier operation and Instant cost per print calculation according to message size.

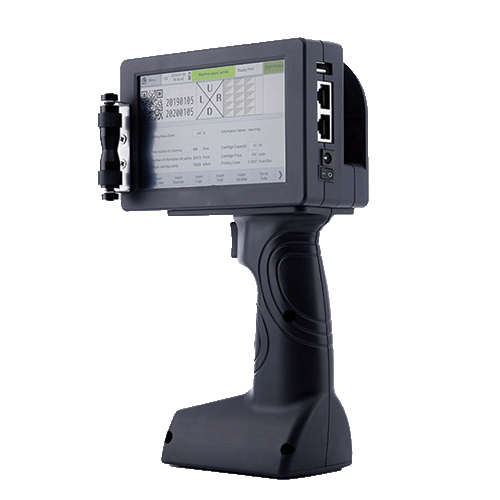

Handheld Printer Bundle Includes:
18650 Li-Ion Batteries
18650 charger with at least 3 charging positions, cable, and wall adapter
Wireless Barcode Scanner
Mini-USB cable
Wall charger for handheld scanner
The print engine uses TIJ-dedicated ASIC chips, a perfect match for a variety of original and licensed HP ink. Professional cartridge preheat algorithm to ensure optimum print quality in high- and low-temperature environments.
The United States TI’s AM3358 industrial-grade CPU, Xilinx company Spant6 industrial-grade FPGA. In industrial applications, various conditions of the occasion more stable and reliable anti-interference ability better.
Powerful variable function of two-dimensional code, two-dimensional code applications to meet customer demand. Efficient and flexible variable database functions to meet various application requirements traceability.
Intelligent embedded linux operating system, provides a professional and more user-friendly interface. Embedded powerful drop consumption of specific algorithms that instantly calculate printing costs for the customer.
Technical Parameters
|
Nozzle parameters
|
Nozzle type
|
Thermally foamable head TIIJ2.5
|
|
Printing accuracy
|
150DPI / 300DPI / 600DPI
|
|
Print height
|
The minimum print 1mm / maximum printheight 12.7mm
|
|
Printing from
|
Best print from 2-5mm
|
|
Print content
|
Multi-language character, dynamic two-dimensional code, barcode, images, serial number, date, counter, variable dynamic database, RS232 receive real-time data printing
|
|
Printing material
|
Cardboard, plastic, metal, plate, pipe, stone, cable, electronic components, auto parts, industrial chemical packaging, pharmaceutical, food, gift boxes
|
|
Ink type
|
aqueous/solvent 42 ml cartridge CISS
|
|
Ink color
|
Black, white, red, yellow, blue, green, stealth, UV
|
|
Cartridge chip
|
Contactless chip RFID tags, automatic identification and recording ink of the ink remaining parameters
|
|
Machine parameters
|
Operating system
|
Embedded Linux operating system
|
|
The main hardware
|
American TI AM3358 industrial-grade CPU, USA Xilinx Spant6 industrial-grade FPGA, TIJ-dedicated ASIC chip
|
|
Communication interface
|
USB, RS232
|
|
External interface
|
Photocell, encoder, reverse inverting contro
|
|
Supported languages
|
Multi-language ( Chinese, English, Arabic, Danish, German, Russian, French, Finnish, Korean, Norwegian, Portuguese, Japanese, Spanish, Italian, etc.)
|
|
Battery parameters
|
12.6V / 3550mAh lithium batteries (lithium batteries detachably supporting a single)
|
|
Power parameters
|
100-240V AC input / 12.6V 3A DC output
|
|
Machine materials
|
ABS + PC + metal
|
|
Machine specifications
|
230mm*137mm*97mm
|
|
Working environment
|
Temperature of 0-45℃, humidity of 30-70% Rh
|
